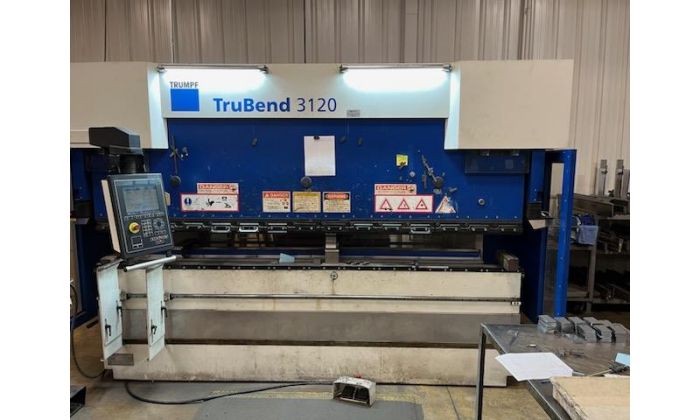

Trumpf TB 3120 Press Brake, 137 Ton, 4 Axis Year New: 2008
Trumpf True Bend 3120 is a low cost high-end 120 Metric Tons, 10’ brake with 4 axis simple design.
| Model | TB 3120 |
|---|---|
| Tonnage | 137 US Tons |
| Max Bend Length | 122” |
| Max Stroke Length | 7.87” |
| Open Height | 15” |
| Throat Depth | 18” |
| Distance Between Frames | 100.394” |
| Control | Delem Trumpf 4 Axis |
| Axis | 4 |
| Machine Height | 92” |
| Machine Length | 141” |
| Machine Width | 69” |
| Tooling Type | European |
| Year New | 2008 |
| Size | 3.0-4.5 Dl |
|---|
PART #
2008 Trumpf True Bend 3120
