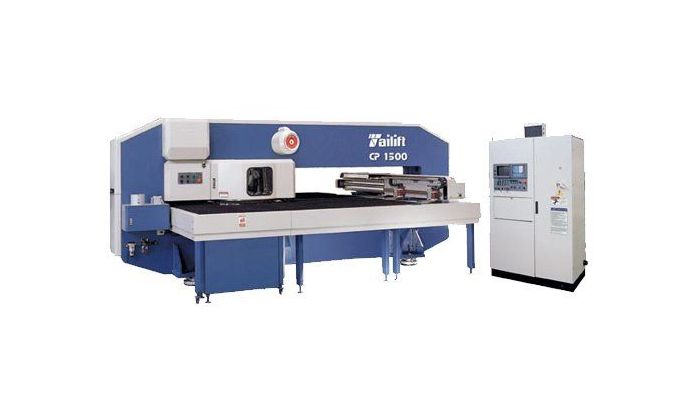

30 Tons, 40 Station, 1525mm x 3050 mm max sheet size, FANUC 0i-PC Control
|
Model
|
|||
|
Punch Capacity
|
tons
|
30
|
|
|
Traverse Length X x Y
|
mm
|
1525 x 1525
|
|
|
Max Sheet Size
|
mm
|
1525 x 3050
|
|
|
Max Sheet Thickness
|
mm
|
6.35
|
|
|
Max Sheet Weight
|
kg
|
110
|
|
|
Traverse Axis Speed
X x Y |
m/min
|
80 x 70
|
|
|
Tooling Type
|
Thick Turret
|
||
|
25mm between Holes
|
m/min
|
210
|
|
|
Nibbling Speed
|
m/min
|
350
|
|
|
Max Punch Diameter
|
mm
|
114.3
|
|
|
Number of Stations
|
40
|
||
|
Number of Auto Index Stations
|
2 x D Type
|
||
|
Turret Rotation
|
rpm
|
40
|
|
|
Auto Index Rotation
|
rpm
|
50
|
|
|
Ram Stroke Length
|
mm
|
32
|
|
|
Number of Sheet Clamps
|
2
|
||
|
Power Requirement
|
kva
|
25
|
|
|
Air Consumption
|
L/min
|
250
|
|
|
Required Air Pressure
|
bar
|
5
|
|
|
Oil Tank Volume
|
L
|
120
|
|
|
Machine Size
L x W x H |
mm
|
5050x3200x2200
|
|
|
Controller Cabinet
W x D x H |
mm
|
1200x 600x1900
|
|
|
CNC Controller
|
FANUC 0i-PC
|
||
|
Memory
|
kb
|
256
|
|
|
Number of Controllable Axes
|
4
|
(1) The speed of X and Y axes depend upon the weight of the work sheet.
(2) The punch speed depends upon the length and speed of ram stroke and the speed of X and Y axes.
(2) The punch speed depends upon the length and speed of ram stroke and the speed of X and Y axes.
| Size | 3.0-4.5 Dl |
|---|
PART #
Tailift cp 1500
